Debugging ArgoCD Sync Failures: A Systematic Approach

GitOps sells you on declarative simplicity: define your desired state in Git, and ArgoCD makes it so. The pitch works beautifully in demos. In production, you’ll eventually stare at a sync that’s been “Progressing” for 20 minutes, wondering what’s actually happening inside the black box.

I hit this during a production deployment that had worked flawlessly in staging for months. The sync started normally, applied the first few resources, then stopped. No error. No timeout. Just… stuck. Manual kubectl apply worked fine—it only hung when deployed through ArgoCD.

The root cause was a sync wave ordering issue. A PreSync hook was waiting for a service that wouldn’t exist until wave 0, but the hook was in wave -1. In staging, the service happened to exist from a previous deployment. In production, we’d just created the namespace. The dependency was always broken—we just never noticed.

This is the gap between GitOps theory and operational reality. When sync fails, you need to understand what ArgoCD is actually doing underneath the abstraction.

What ArgoCD Is Actually Doing

Before debugging, you need a mental model of the sync process. When you push a commit or click “Sync,” ArgoCD kicks off a multi-phase process:

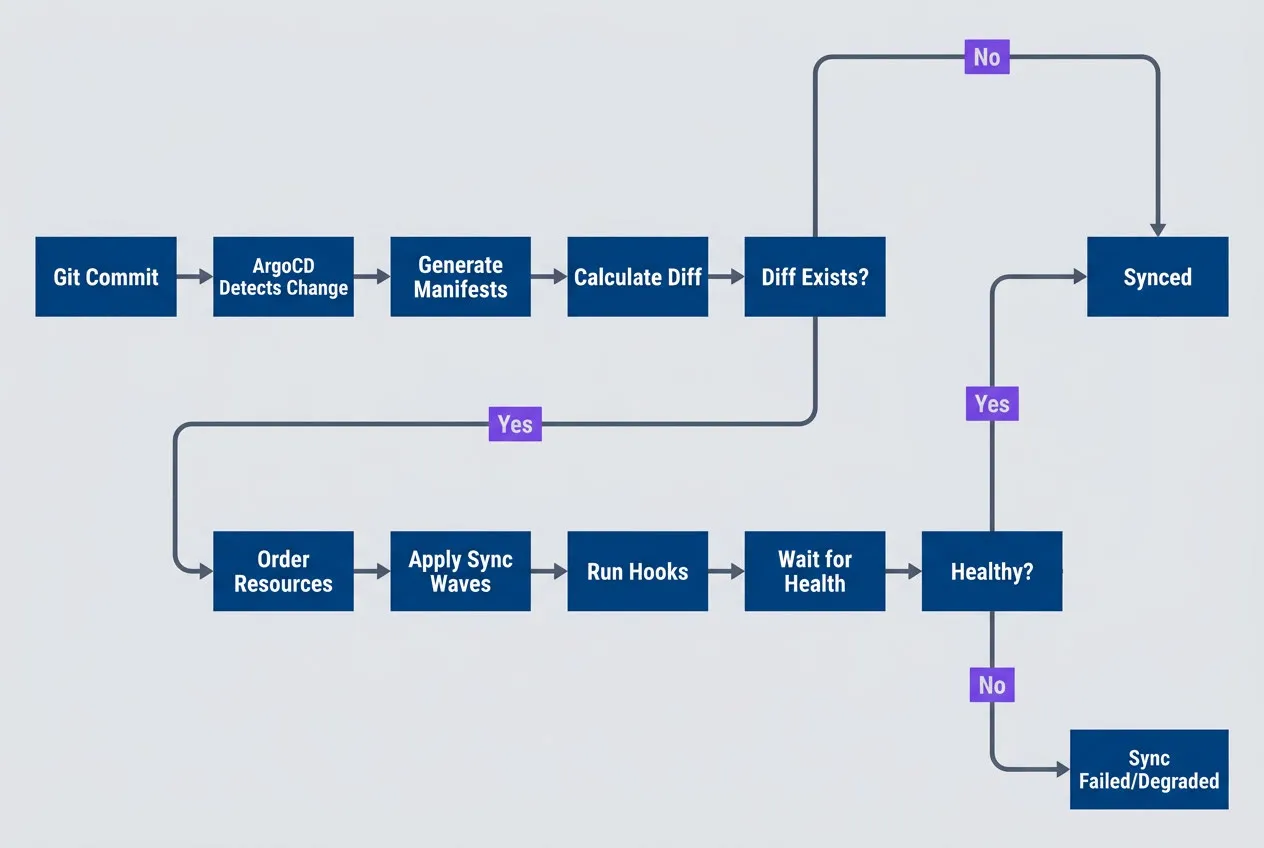

Figure: ArgoCD sync process from Git commit to healthy application.

First, ArgoCD detects the change through polling or webhooks. It generates manifests (running Helm template or Kustomize build if needed), calculates the diff against live cluster state, orders resources by sync wave, applies them wave by wave, and waits for each to become healthy before proceeding.

Sync Waves Control Ordering

Kubernetes doesn’t guarantee resource creation order. Sync waves give you explicit control—each resource can have an argocd.argoproj.io/sync-wave annotation with an integer value. Lower numbers go first:

# Sync wave annotations control resource ordering.
# Lower numbers apply first; default is wave 0.

apiVersion: v1
kind: Secret
metadata:
  annotations:
    argocd.argoproj.io/sync-wave: "-1"
  name: app-secrets
---
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    argocd.argoproj.io/sync-wave: "0"
  name: app

Resources in the same wave apply in parallel. ArgoCD waits for all resources in a wave to be healthy before moving to the next. If your Deployment in wave 0 references that Secret, you’re guaranteed it exists.

The wave numbers themselves are arbitrary—what matters is the relative order. Here’s a pattern that works for most applications:

Hooks Run Outside Normal Sync

Sync waves control ordering within the apply phase. But what if you need to run something before sync starts, or after it completes?

Hooks let you run resources outside the normal apply process—before sync starts (PreSync), after it completes (PostSync), or when it fails (SyncFail). The most common use case is database migrations: run them after new code deploys but before traffic shifts.

Hooks are typically Kubernetes Jobs. The critical thing to understand: ArgoCD waits for hooks to complete before proceeding. If a hook hangs, your entire sync hangs—with no timeout by default.

The Four-Step Debugging Workflow

When sync fails, resist the urge to poke at random things. A systematic approach gets you to the root cause faster.

Step 1: Identify the Failure Point

Start broad and narrow down:

#!/bin/bash

# Get application status overview
argocd app get myapp

# Get detailed sync operation status
argocd app get myapp --show-operation

# List resources with sync/health status
argocd app resources myapp

The output tells you sync status (Synced, OutOfSync, Unknown) and health status (Healthy, Progressing, Degraded). The combination reveals the problem category:

The --show-operation flag shows which phase the sync is in. “Running PreSync hooks” means a hook is stuck. “Sync error” with a message means apply failed.

Step 2: Examine ArgoCD Logs

ArgoCD has several components, each handling different parts:

#!/bin/bash

# Application controller logs (sync decisions, health checks)
kubectl logs -n argocd -l app.kubernetes.io/name=argocd-application-controller | grep "myapp"

# Repo server logs (manifest generation, Helm/Kustomize)
kubectl logs -n argocd -l app.kubernetes.io/name=argocd-repo-server | grep "myapp"

Most sync failures show up in application-controller logs. If you’re seeing “manifest generation failed” or Helm/Kustomize errors, check repo-server instead.

Step 3: Inspect Kubernetes State

ArgoCD reports what Kubernetes tells it. Verify what’s actually happening:

#!/bin/bash

# Check pod status and events
kubectl get pods -n myapp
kubectl describe pod -n myapp -l app=myapp

# Check recent events
kubectl get events -n myapp --sort-by='.lastTimestamp' | tail -20

The kubectl describe Events section is often the most useful—it shows why pods failed to schedule, failed to pull images, or failed to start. Common culprits: image pull failures, resource quota exceeded, missing secrets.

Step 4: Test Your Fix

ArgoCD provides options for testing before committing:

#!/bin/bash

# Dry-run to see what would happen
argocd app sync myapp --dry-run

# Hard refresh to clear stale cache
argocd app get myapp --hard-refresh

# Sync specific resource only
argocd app sync myapp --resource apps:Deployment:app

Use --dry-run to verify your fix before applying. Use --hard-refresh when ArgoCD seems to be showing stale state. Use --resource to test a single resource without re-syncing everything.

Recognizing Common Failure Patterns

Once you’ve gathered information, match it against these common patterns:

The “stuck on hook” pattern connects directly to the intro story—my production incident was exactly this. The hook was waiting for a dependency that didn’t exist yet. Once you know to check hook job logs with kubectl logs -l job-name=<hook>, the cause usually becomes obvious.

The OutOfSync loop deserves special mention because it can be maddening. You sync, it completes, and five seconds later it’s OutOfSync again. The cause is always something modifying the resource after ArgoCD applies it. The most common culprit is HPA changing replica counts. Use argocd app diff myapp to see exactly which fields are changing, then add them to ignoreDifferences in your Application spec.

Conclusion

ArgoCD sync failures are frustrating because they break the promise of GitOps: you pushed to Git, so it should just work. But that frustration fades once you understand what’s happening beneath the abstraction.

Free PDF Guide

Download the ArgoCD Troubleshooting Guide

Get the complete GitOps debugging reference for sync waves, hook failures, and recovery workflows during blocked deployments.

What you'll get:

• Sync wave ordering runbooks
• Hook deadlock diagnosis checklist
• OutOfSync loop remediation patterns
• Production recovery workflow guide

Free resource

Instant access

Download Now

Learn More

No credit card required.

The workflow covered here gives you a systematic approach: identify what failed by checking ArgoCD status, understand when it failed by examining sync waves and hooks, verify why it failed by inspecting Kubernetes state, and test your fix before committing. Most failures fall into a few recognizable categories—once you identify the pattern, the fix is usually straightforward.

What makes this workflow valuable isn’t memorizing every edge case. It’s building a mental model of what ArgoCD is actually doing during sync. When you understand that sync waves control ordering, that hooks block until completion, and that health checks determine when ArgoCD considers a resource “ready,” you can reason about failures even when they don’t match a known pattern.

GitOps isn’t magic—it’s automation. When the automation fails, you need to understand what it was trying to do. The declarative model abstracts away the how of deployment, which is powerful until something goes wrong. Then the abstraction becomes the obstacle. The debugging skills in this article help you see through it.
