Blue/green vs Canary: Choosing Deployment Strategies

Every platform team eventually faces the question: “Should we do blue/green or canary?” The conversation usually starts after a bad deployment, when someone suggests that a more sophisticated strategy would have caught the problem earlier.

Here’s the uncomfortable truth: the answer depends on factors most teams don’t discuss until they’re already committed. Database state handling. Traffic management capabilities. Rollback requirements. Operational maturity. These constraints matter more than which strategy sounds more advanced.

I watched a team spend six months implementing canary deployments because it seemed like the mature choice. They built the Istio configuration, the analysis pipelines, the promotion automation. Then they hit their first schema migration. Both versions needed to work with the same database, but the new version required a column rename. Their canary infrastructure couldn’t help — they needed expand-contract migrations, which they didn’t have. The canary sat at 1% traffic for two weeks while they figured out what to do.

They eventually realized that blue/green with feature flags would have given them everything they actually needed: instant rollback, pre-production validation, and gradual feature exposure. The canary complexity was solving a problem they didn’t have while ignoring the problem they did.

This isn’t a story about canary being bad. It’s about choosing deployment strategies based on your actual constraints rather than perceived sophistication.

Deployment Strategy Overview

The Deployment Strategy Spectrum

Before diving into blue/green and canary specifically, it helps to see where they fit among all deployment strategies. This isn’t a progression from “beginner” to “advanced”—it’s a spectrum of tradeoffs. Each strategy makes different assumptions about what you can afford — downtime, infrastructure cost, operational overhead, and tooling investment.

The numbers tell part of the story, but the real differences are in how each strategy behaves when things go wrong. Here’s what those tradeoffs actually look like in practice:

When Simple Wins

I’ve seen teams implement canary deployments for services that deploy once a month. The infrastructure sat idle 99% of the time, and when they did deploy, no one remembered how the analysis worked. A rolling update with good smoke tests would have been simpler and just as effective.

The questions that actually matter:

That last question is the one teams most often ignore. If your schema migration breaks the old version, it doesn’t matter whether you’re doing blue/green, canary, or rolling — you’ve got a problem. We’ll cover this in detail later.

Blue/green Deployments

How Blue/green Works

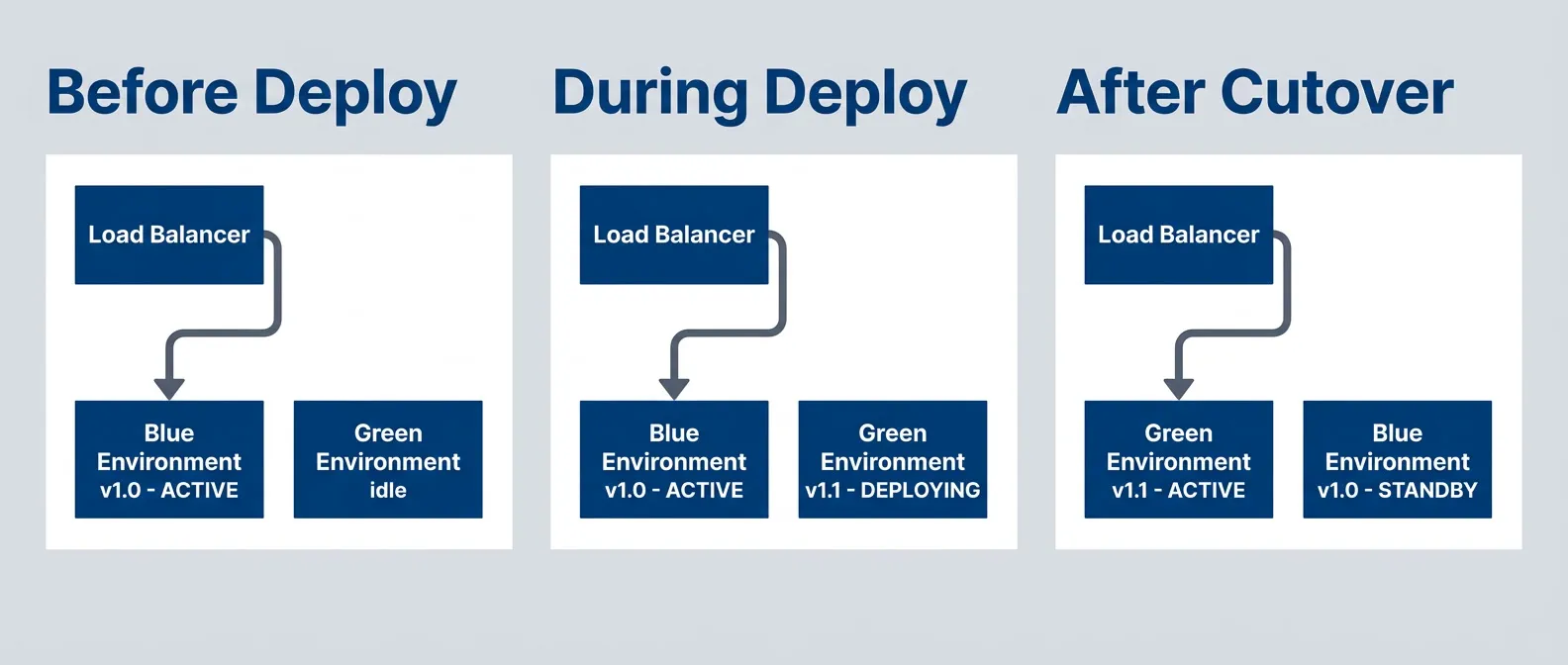

Blue/green deployment maintains two identical production environments. At any time, one is “live” (receiving traffic) and one is “idle” (ready for the next deployment). When you deploy, you update the idle environment, validate it, then switch traffic. The old live environment becomes the new idle — ready for instant rollback if needed.

The mental model is simple: you’re always one configuration change away from either the new version or the old one.

In Kubernetes, the simplest implementation uses label selectors. Both deployments run simultaneously, and the Service routes traffic based on which label it selects.

# Blue deployment (current production)
apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp-blue
  labels:
    app: myapp
    version: blue
spec:
  replicas: 3
  selector:
    matchLabels:
      app: myapp
      version: blue
  template:
    metadata:
      labels:
        app: myapp
        version: blue
    spec:
      containers:
      - name: myapp
        image: myapp:1.0.0
---
# Green deployment (new version)
apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp-green
  labels:
    app: myapp
    version: green
spec:
  replicas: 3
  selector:
    matchLabels:
      app: myapp
      version: green
  template:
    metadata:
      labels:
        app: myapp
        version: green
    spec:
      containers:
      - name: myapp
        image: myapp:1.1.0
---
# Service - switch by changing selector
apiVersion: v1
kind: Service
metadata:
  name: myapp
spec:
  selector:
    app: myapp
    version: blue  # Change to 'green' to switch
  ports:
  - port: 80
    targetPort: 8080

The cutover is a single kubectl patch command. No pods restart, no gradual rollout — traffic shifts immediately. And because the old version keeps running, rollback is equally instant — just point traffic back.

Blue/green Challenges

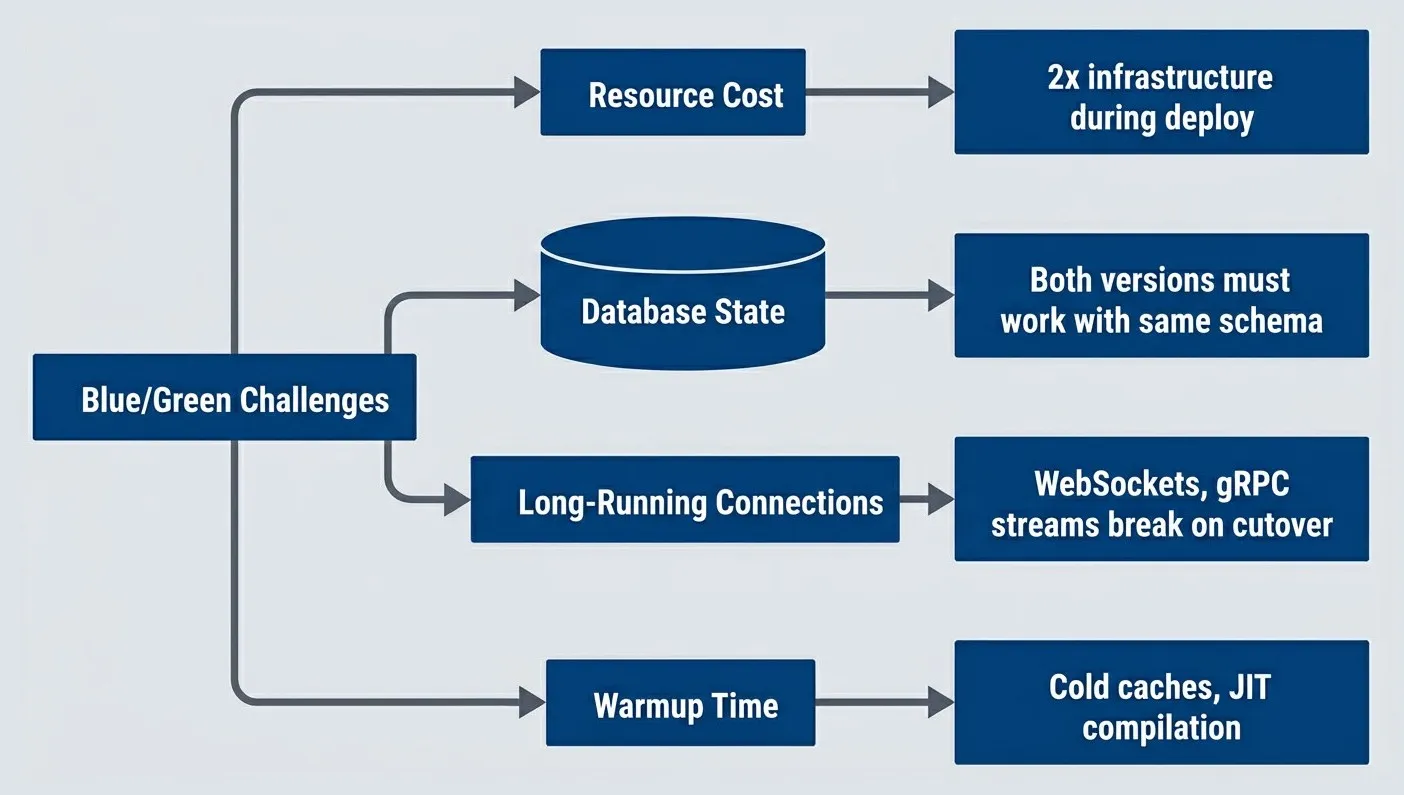

Blue/green isn’t free. The tradeoffs are real, and ignoring them leads to surprises.

Resource cost is the obvious one: you’re running two production environments. During active deployment, that’s 2x compute. Even when idle, the standby environment consumes resources unless you scale it down.

Database state affects all deployment strategies, but blue/green makes it explicit. Both environments point at the same database, so both versions must handle the current schema. We’ll cover this in detail later — it’s important enough to deserve its own section.

Long-running connections break on cutover. If your application uses WebSockets, gRPC streams, or HTTP/2 server push, clients connected to blue will lose their connections when traffic switches to green. You need graceful connection draining or client-side reconnection logic.

Connection draining means telling the old environment to stop accepting new connections while allowing existing requests to complete. In Kubernetes, this is controlled by terminationGracePeriodSeconds—when you switch traffic away from blue, give it 30-60 seconds to finish in-flight requests before terminating pods. For WebSockets, you’ll also need application-level logic: send a “reconnect” message to connected clients before shutdown, or implement automatic reconnection on the client side.

Warmup time catches teams off guard. The green environment might be “up” but cold — empty caches, uncompiled JIT code, no connection pools. The first requests after cutover hit a system that’s technically ready but not warm.

You can mitigate the resource cost:

Most teams use a hybrid: scale the standby environment down to minimal capacity between deploys, then scale up when deployment starts. You trade deployment speed for cost savings.

Blue/green Rollback

Rollback is where blue/green shines. The old version is already running — you just redirect traffic back to it.

#!/bin/bash
# Blue/green rollback - extremely simple

# Option 1: Kubernetes selector change
kubectl patch service myapp -p '{"spec":{"selector":{"version":"blue"}}}'

# Option 2: Istio VirtualService
kubectl patch virtualservice myapp --type='json' \
  -p='[{"op": "replace", "path": "/spec/http/0/route/0/destination/subset", "value": "blue"}]'

# Option 3: AWS ALB target group
aws elbv2 modify-listener --listener-arn $LISTENER_ARN \
  --default-actions Type=forward,TargetGroupArn=$BLUE_TG_ARN

# Rollback is instant - no pod termination, no deployment
# Old version was running the entire time

Compare this to rolling update rollback, which means deploying the old image again and waiting for pods to cycle. Or canary rollback, which requires reconfiguring traffic weights. Blue/green rollback is a single atomic operation.

Canary Deployments

How Canary Works

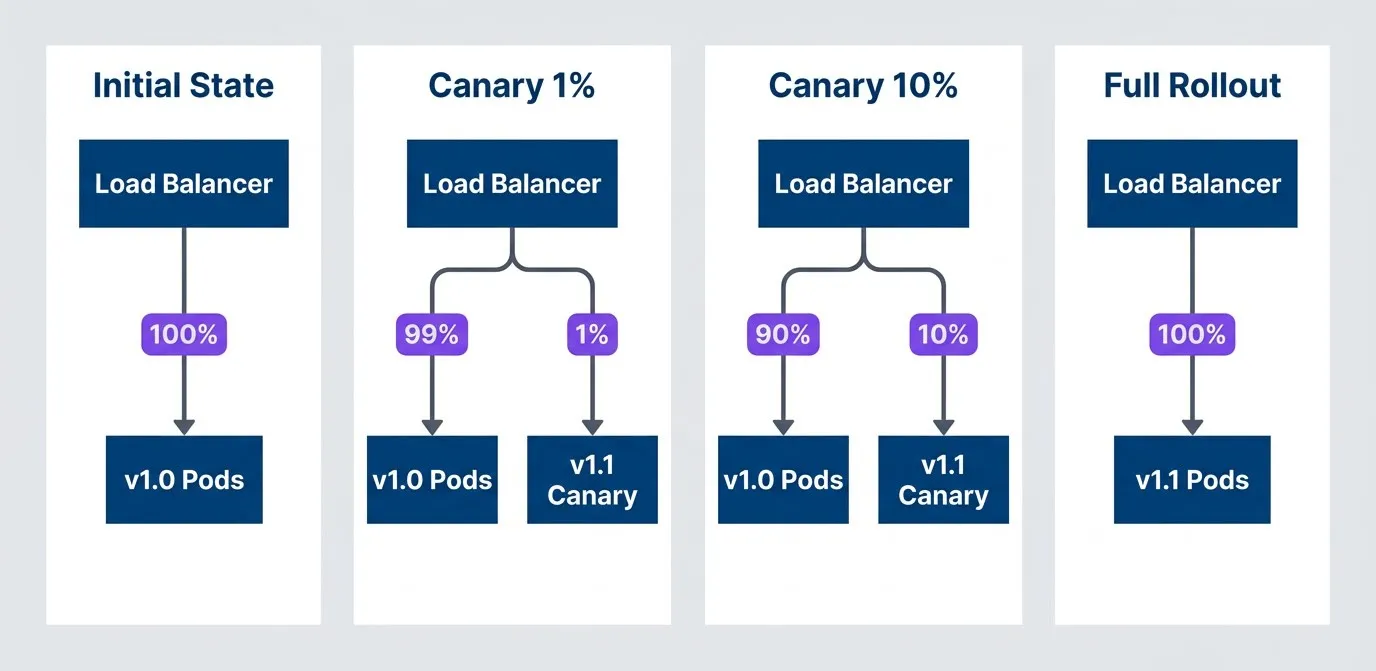

Canary deployment takes a different approach: instead of switching all traffic at once, you gradually shift it. Deploy the new version alongside the old, send it 1% of traffic, watch the metrics. If things look good, increase to 10%, then 50%, then 100%. If something breaks, you’ve only affected a small percentage of users — and you roll back before most people notice.

The name comes from coal mining, where canaries detected toxic gases before miners were harmed. Your canary deployment detects production problems before most users are affected.

Implementing canary requires traffic splitting at the load balancer or service mesh level. Here’s an Istio configuration that routes 5% of traffic to the canary, with an override header for testing:

# Istio VirtualService for canary traffic splitting
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: myapp
spec:
  hosts:
  - myapp
  http:
  - match:
    - headers:
        x-canary:
          exact: "true"
    route:
    - destination:
        host: myapp
        subset: canary
  - route:
    - destination:
        host: myapp
        subset: stable
      weight: 95
    - destination:
        host: myapp
        subset: canary
      weight: 5
---
apiVersion: networking.istio.io/v1beta1
kind: DestinationRule
metadata:
  name: myapp
spec:
  host: myapp
  subsets:
  - name: stable
    labels:
      version: stable
  - name: canary
    labels:
      version: canary

The header override (x-canary: true) is useful for testing — you can force your requests to the canary before opening it to real users.

The resource efficiency is worth noting. Unlike blue/green’s 2x infrastructure during deployment, canary only needs enough extra capacity for the canary percentage — typically 10-50% more, not double.

Canary Challenges

Canary’s gradual approach comes with significant complexity. You need infrastructure that most teams don’t have out of the box.

Canary Analysis and Automation

Manual canary promotion is tedious and error-prone. You deploy, watch dashboards for 10 minutes, increase traffic, watch for another 10 minutes, repeat. At 3 AM, someone skips the observation period because they want to go back to sleep.

Automated canary analysis solves this. Define promotion criteria upfront, let the system watch metrics and decide whether to promote, hold, or roll back.

# AWS CodePipeline gate Lambda: evaluate CloudWatch metrics to promote, hold, or roll back canary.
import os

import boto3
from botocore.exceptions import ClientError

cloudWatch = boto3.client('cloudwatch')

# Thresholds - absolute limits that trigger immediate rollback
ABSOLUTE_ERROR_RATE_THRESHOLD = 0.05  # >5% errors is always bad
ABSOLUTE_LATENCY_P99_THRESHOLD = 5000  # >5s p99 is always bad

# Thresholds - relative limits comparing canary to stable
RELATIVE_ERROR_RATE_THRESHOLD = 1.5  # 50% more errors than stable
RELATIVE_LATENCY_THRESHOLD = 1.2  # 20% slower than stable


def getMetricAverage(namespace, metricName, dimensions, minutes=5):
  """Fetch average metric value over the specified time window."""
  response = cloudWatch.get_metric_statistics(
    Namespace=namespace,
    MetricName=metricName,
    Dimensions=dimensions,
    StartTime=datetime.utcnow() - timedelta(minutes=minutes),
    EndTime=datetime.utcnow(),
    Period=60,
    Statistics=['Average']
  )
  datapoints = response.get('Datapoints', [])
  if not datapoints:
    return None
  return sum(d['Average'] for d in datapoints) / len(datapoints)


def lambdaHandler(event, context):
  serviceName = event.get('serviceName')
  namespace = event.get('namespace', 'MyApp')

  # Get canary metrics
  canaryErrorRate = getMetricAverage(
    namespace, 'ErrorRate',
    [{'Name': 'Version', 'Value': 'canary'}, {'Name': 'Service', 'Value': serviceName}]
  )
  canaryLatencyP99 = getMetricAverage(
    namespace, 'LatencyP99',
    [{'Name': 'Version', 'Value': 'canary'}, {'Name': 'Service', 'Value': serviceName}]
  )

  # Get stable metrics for comparison
  stableErrorRate = getMetricAverage(
    namespace, 'ErrorRate',
    [{'Name': 'Version', 'Value': 'stable'}, {'Name': 'Service', 'Value': serviceName}]
  )
  stableLatencyP99 = getMetricAverage(
    namespace, 'LatencyP99',
    [{'Name': 'Version', 'Value': 'stable'}, {'Name': 'Service', 'Value': serviceName}]
  )

  # Check for insufficient data
  if canaryErrorRate is None or stableErrorRate is None:
    return {'action': 'hold', 'reason': 'Insufficient metric data', 'confidence': 0.5}

  # Absolute thresholds - immediate rollback regardless of stable performance
  if canaryErrorRate > ABSOLUTE_ERROR_RATE_THRESHOLD:
    return {'action': 'rollback', 'reason': f'Error rate {canaryErrorRate:.1%} exceeds 5%', 'confidence': 0.95}

  if canaryLatencyP99 and canaryLatencyP99 > ABSOLUTE_LATENCY_P99_THRESHOLD:
    return {'action': 'rollback', 'reason': f'P99 latency {canaryLatencyP99}ms exceeds 5s', 'confidence': 0.95}

  # Relative thresholds - compare canary to stable
  errorRatio = canaryErrorRate / max(stableErrorRate, 0.001)  # Avoid division by zero
  if errorRatio > RELATIVE_ERROR_RATE_THRESHOLD:
    return {'action': 'rollback', 'reason': f'Error rate {errorRatio:.1f}x higher than stable', 'confidence': 0.9}

  if canaryLatencyP99 and stableLatencyP99:
    latencyRatio = canaryLatencyP99 / stableLatencyP99
    if latencyRatio > RELATIVE_LATENCY_THRESHOLD:
      return {'action': 'hold', 'reason': f'Latency {latencyRatio:.1f}x higher than stable', 'confidence': 0.7}

  # Check minimum observation time
  observationSeconds = int(event.get('observationSeconds', 0))
  minObservationSeconds = int(os.getenv('MIN_OBSERVATION_SECONDS', '300'))
  if observationSeconds < minObservationSeconds:
    return {'action': 'hold', 'reason': 'Observation window not long enough', 'confidence': 0.7}

  return {'action': 'promote', 'reason': 'All metrics within acceptable range', 'confidence': 0.9}

The key insight is using both absolute thresholds (error rate > 5% is always bad) and relative thresholds (50% more errors than stable is a regression, even if the absolute rate is low). Absolute thresholds catch catastrophic failures regardless of baseline. Relative thresholds catch regressions even when the absolute numbers look acceptable. Tools like Argo Rollouts and Flagger implement this pattern with Prometheus queries. The total deployment time is longer than blue/green (30+ minutes vs. seconds), but you gain confidence that the new version works with real traffic before committing fully.

Comparing Strategies

Decision Matrix

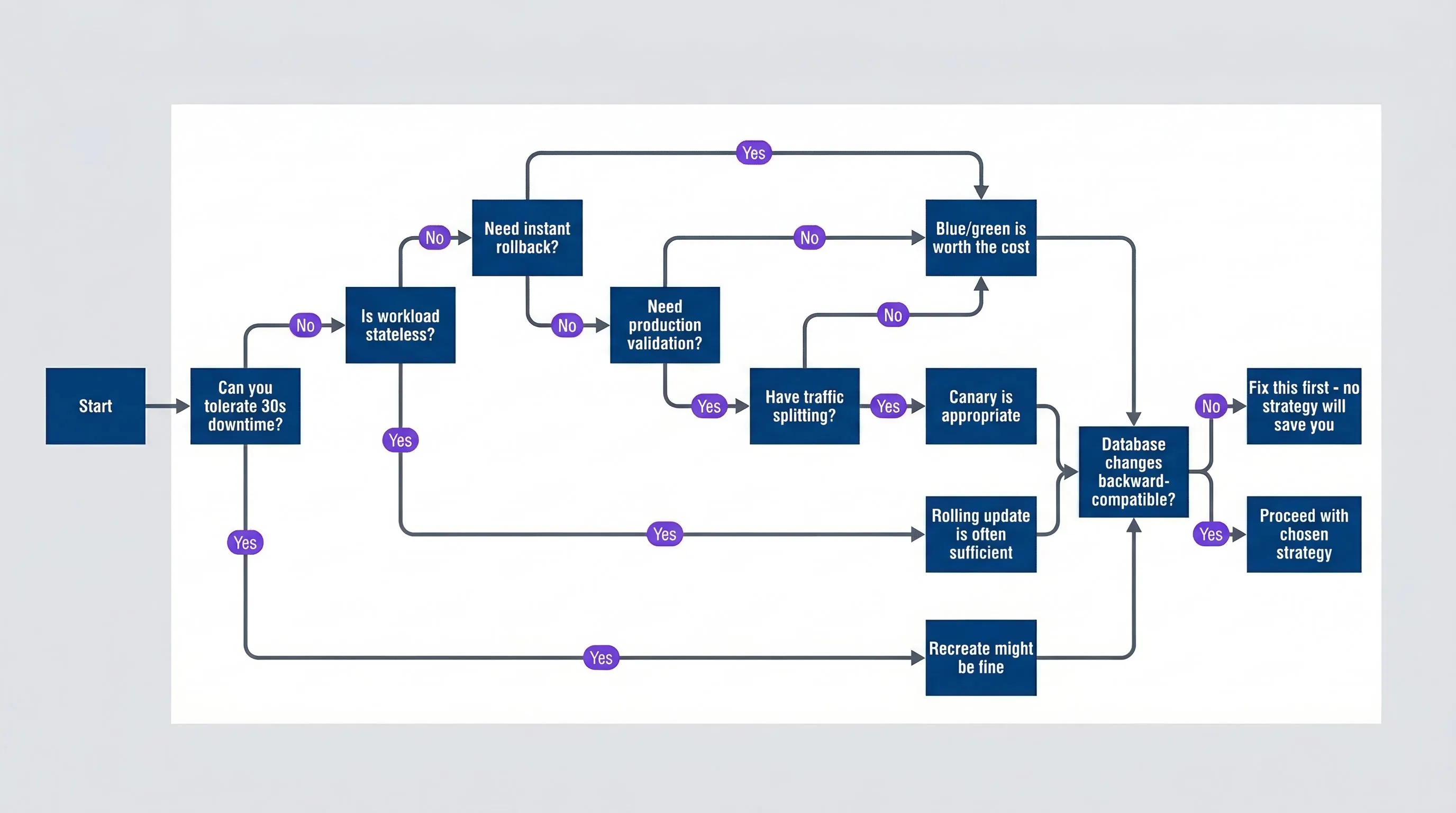

With both strategies understood, the choice comes down to your constraints and priorities. This matrix summarizes the trade-offs:

The “database handling” row is intentionally identical — neither strategy solves schema compatibility. That problem is orthogonal to traffic routing.

When to Choose Blue/green

Blue/green is the right choice when you value simplicity and instant rollback over gradual validation:

When to Choose Canary

Canary is the right choice when you need production validation and can afford the complexity:

Database State: The Elephant in the Room

Why Database State Complicates Everything

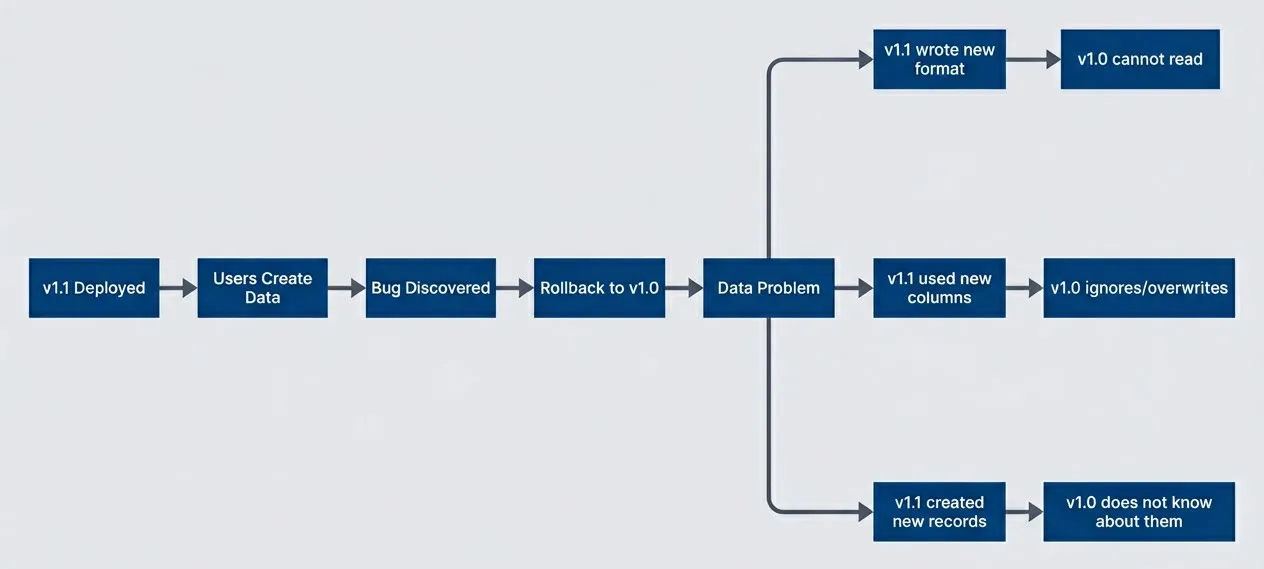

Here’s the uncomfortable truth that deployment strategy discussions often gloss over: neither blue/green nor canary solves database schema incompatibility. Both strategies assume your old and new application versions can work with the same database schema simultaneously. When that assumption breaks, no amount of traffic routing sophistication will save you.

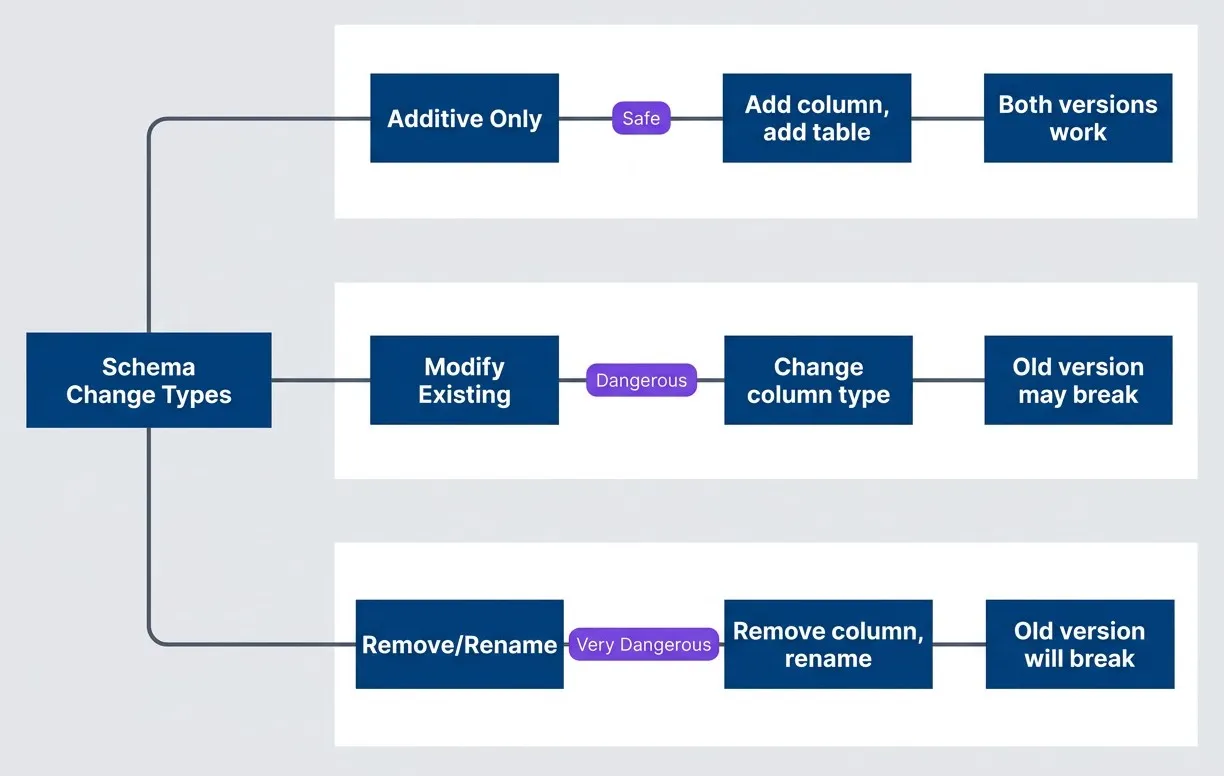

Schema changes fall into three categories with very different risk profiles:

Additive changes are safe: adding a nullable column, creating a new table, adding an index. The old version ignores what it doesn’t know about, the new version uses what it needs. Both versions work.

Modifying existing structures gets dangerous. Changing a column type, adding a NOT NULL constraint, or adding a foreign key can break the old version mid-deployment. Even if the change is “compatible,” you’re relying on implicit behavior that may vary between database versions.

Removing or renaming is where deployments fail. If v1.1 removes a column that v1.0 still reads, you can’t run both versions simultaneously — which means no blue/green warmup period, no canary gradual rollout. You’re back to big-bang deployments with their attendant risks.

The deployment strategy you choose doesn’t change this calculus. Canary doesn’t let you “test” a breaking schema change on 5% of traffic — the schema change affects 100% of the database the moment you run the migration.

The Expand-Contract Pattern

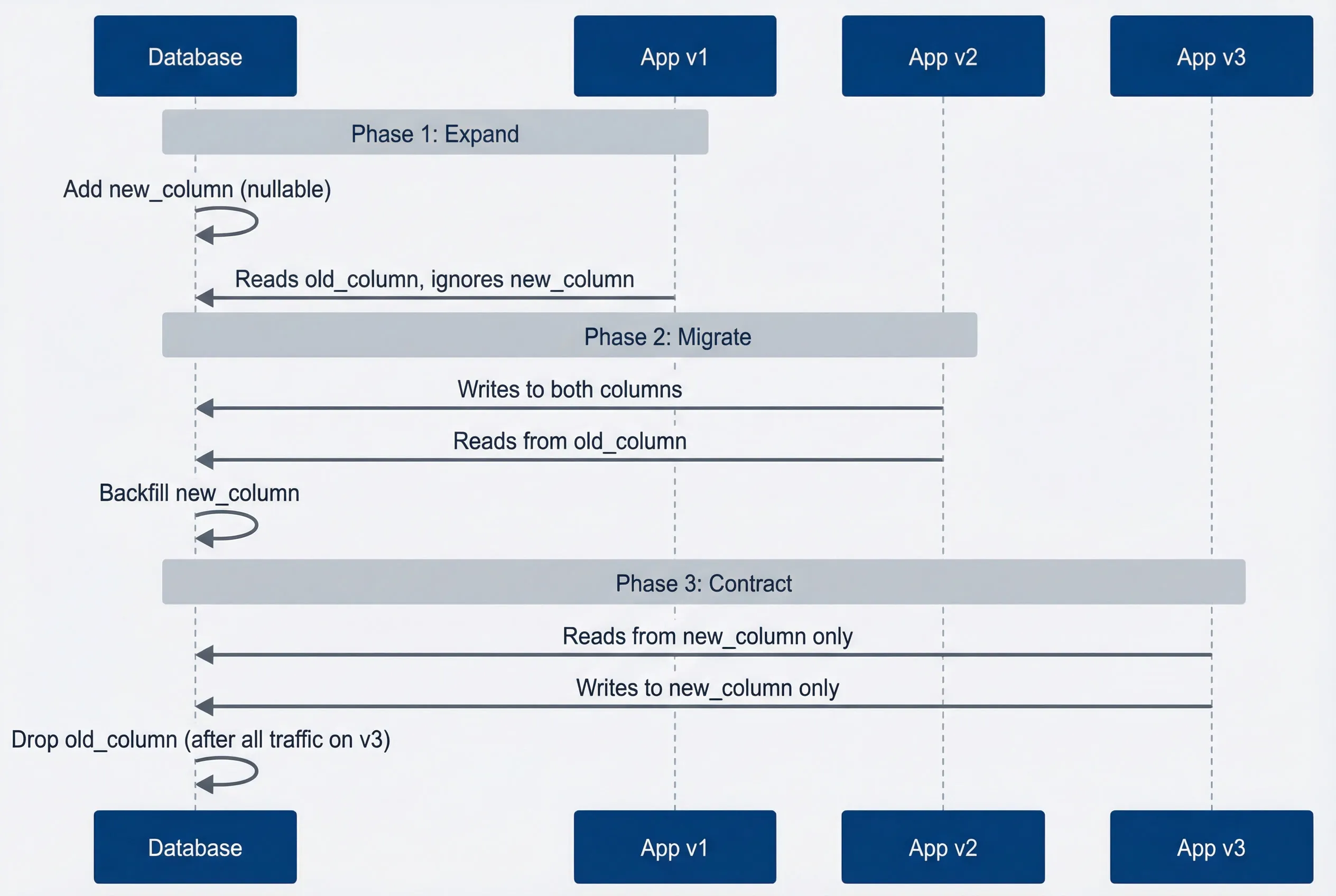

The solution is decoupling schema changes from application deployments through expand-contract migrations. Instead of one deployment that changes both schema and code, you do three:

Here’s a concrete example — renaming email_verified (boolean) to email_verified_at (timestamp):

-- PHASE 1: Expand (deploy before any app changes)
ALTER TABLE users ADD COLUMN email_verified_at TIMESTAMP NULL;

-- PHASE 2: Migrate (app v2 writes to both, reads old)
-- App code change: write email_verified = true AND email_verified_at = NOW()
-- Backfill existing data:
UPDATE users
SET email_verified_at = created_at
WHERE email_verified = true AND email_verified_at IS NULL;

-- PHASE 3: Contract (only after all traffic on v3+)
-- App code change: read/write only email_verified_at
-- Wait for all old versions to drain
ALTER TABLE users DROP COLUMN email_verified;

This is slower than a single migration, but it’s safe with any deployment strategy. Each phase is independently deployable, rollbackable, and testable. The schema and application changes are decoupled.

Hybrid Strategies

Blue/green with Canary Validation

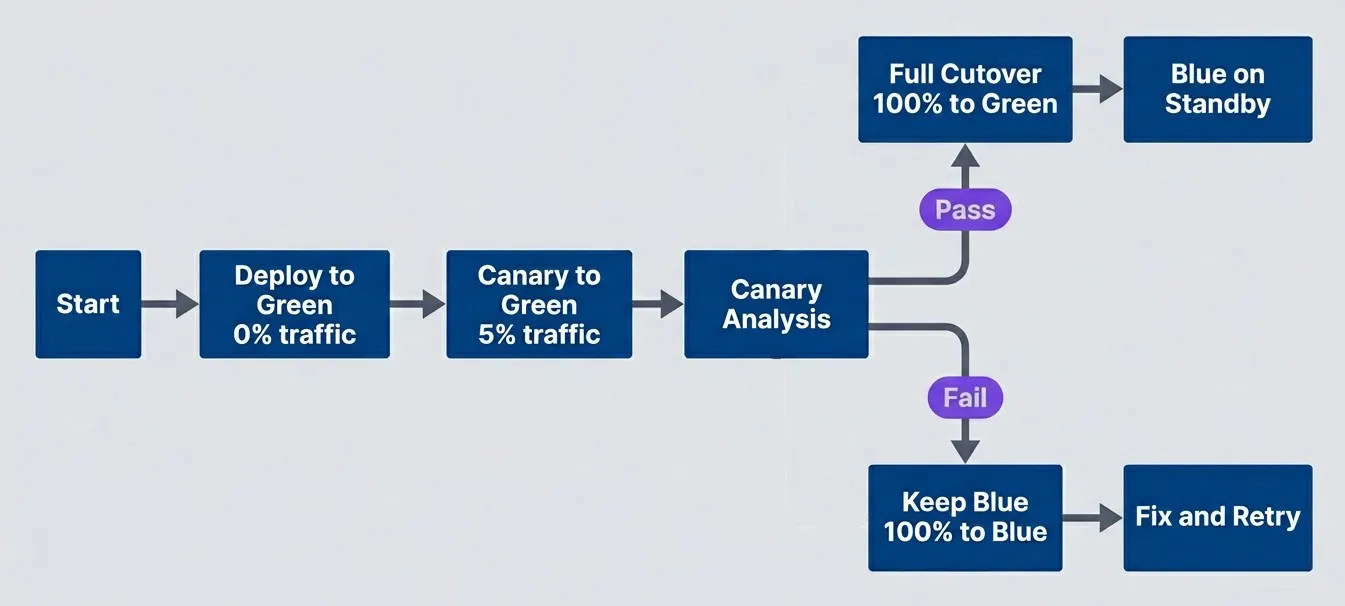

The best teams don’t treat blue/green and canary as mutually exclusive — they combine them. Deploy to the green environment with zero traffic (blue/green), then shift 5% of traffic to green for validation (canary), then cut over fully if metrics look good (blue/green again).

This hybrid gives you canary’s production validation and blue/green’s instant rollback. The green environment is fully deployed and warmed up before it sees any traffic, and the blue environment stays ready for instant fallback throughout.

The key difference from pure canary: you’re not gradually ramping from 5% to 10% to 50%. You validate at a low percentage, then cut over completely. This simplifies the analysis — you only need to answer “is green healthy enough?” not “should we increase the percentage?”

Argo Rollouts supports this pattern natively with its BlueGreen strategy and prePromotionAnalysis:

apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: myapp
spec:
  strategy:
    blueGreen:
      activeService: myapp-active
      previewService: myapp-preview
      prePromotionAnalysis:
        templates:
        - templateName: canary-analysis
        args:
        - name: service-name
          value: myapp-preview
      autoPromotionEnabled: false  # Require manual approval after analysis
      scaleDownDelaySeconds: 1800  # Keep old version for 30min after cutover

Feature Flags as an Alternative

Sometimes the right answer isn’t a sophisticated deployment strategy — it’s feature flags. Instead of routing traffic at the load balancer level, you deploy the code to everyone and control exposure at the application level.

// Instead of complex canary infrastructure,
// deploy the code and control exposure with flags
import { featureFlags } from './feature-service';

async function processOrder(order: Order): Promise<OrderResult> {
  // New algorithm deployed but controlled by flag
  if (await featureFlags.isEnabled('new-pricing-algorithm', {
    userId: order.userId,
    percentage: 5  // 5% canary via flag, not traffic
  })) {
    return newPricingAlgorithm(order);
  }

  return legacyPricingAlgorithm(order);
}

This approach has real advantages over infrastructure-level canary:

Here’s how those advantages compare when you put canary routing, feature flags, and the combined approach side by side:

The trade-off: feature flags add complexity to your application code. Every flag is a branch that needs testing, and flags that live too long become technical debt. But for many teams, this complexity is easier to manage than service mesh configuration.

Rollback Considerations

Rollback Scenarios

Rollback speed is often the deciding factor between deployment strategies. Here’s what actually happens when you need to roll back:

Those qualitative differences translate into concrete numbers that matter during an incident, when seconds count and mixed-version windows create real risk:

Data Consistency During Rollback

Here’s the problem nobody wants to talk about: rollback isn’t truly instant for stateful applications. Even if you shift traffic in under a second, what about the data the new version already wrote?

Consider a scenario: v1.1 adds a preferences_json column and starts writing user preferences there instead of the old preferences blob. You deploy, 100 users update their preferences, then you discover a bug and roll back. Now v1.0 is running, but those 100 users have preferences in a column v1.0 doesn’t read. Their preferences appear to be gone.

The solutions are all variations of “design for this upfront”:

Implementation Checklist

Before implementing either strategy, audit your current capabilities. These checklists help identify gaps before they become production incidents.

Blue/green Checklist

Infrastructure readiness:

Process readiness:

Observability readiness:

Canary Checklist

Infrastructure readiness:

Observability readiness:

Analysis readiness:

Operational readiness:

Conclusion

Deployment strategy selection isn’t about choosing the most sophisticated option — it’s about matching your strategy to your actual constraints.

Blue/green excels when you need instant rollback and can afford the infrastructure cost. It’s simpler to understand, simpler to operate, and works with basic load balancing that every team already has. If your staging environment accurately mirrors production and your database changes are backward-compatible, blue/green gives you everything you need without the complexity of traffic splitting.

Canary excels when you need production validation before full commitment. It catches bugs that only manifest under real traffic patterns, limits blast radius for risky changes, and costs less in infrastructure than running two full environments. But it requires L7 traffic management, version-aware observability, and operational maturity to interpret the analysis results.

Neither strategy solves database schema incompatibility. If your new version requires schema changes that break the old version, you need expand-contract migrations regardless of which deployment strategy you use. This is the constraint that most teams underestimate.

The hybrid approach — blue/green infrastructure with canary validation before cutover — gives you the best of both worlds if you have the operational capacity to manage it. Feature flags provide another layer of control, letting you separate deployment (putting code in production) from release (exposing features to users).

Start simple. If you’re currently doing manual deployments with downtime, rolling updates are a meaningful improvement. If rolling updates work well but you want faster rollback, blue/green is the next step. If blue/green works well but you’ve been burned by staging-production differences, then consider canary.

The best deployment strategy is the one your team can operate reliably at 3 AM when something goes wrong.
