Ingress vs Gateway API: A Practical Comparison

Kubernetes Ingress has been the standard for HTTP routing since 2015, but its limitations led to every ingress controller implementing different annotations and behaviors. If you’ve ever tried to port an Ingress configuration from NGINX to Traefik, you’ve felt this pain — annotations that worked perfectly on one controller are silently ignored by another. Gateway API, which launched in 2020 and reached GA in 2023, addresses these limitations with a more expressive, portable, and role-oriented design.

But more powerful doesn’t always mean better for your use case.

I’ve seen this play out both ways. A team running NGINX Ingress Controller decided to migrate to Gateway API because “it’s the future.” They spent two weeks converting resources, only to discover that their simple host-based routing with TLS termination worked perfectly with Ingress — Gateway API added complexity without new capabilities. Meanwhile, another team I worked with was managing a multi-tenant platform with complex traffic splitting and cross-namespace routing. They’d accumulated a mess of hacky Ingress annotations to work around limitations. For them, Gateway API solved real problems and simplified their configuration.

The lesson: evaluate based on your actual requirements, not industry hype. The choice between Ingress and Gateway API depends on your current tooling, team structure, and routing complexity — not on which technology is newer.

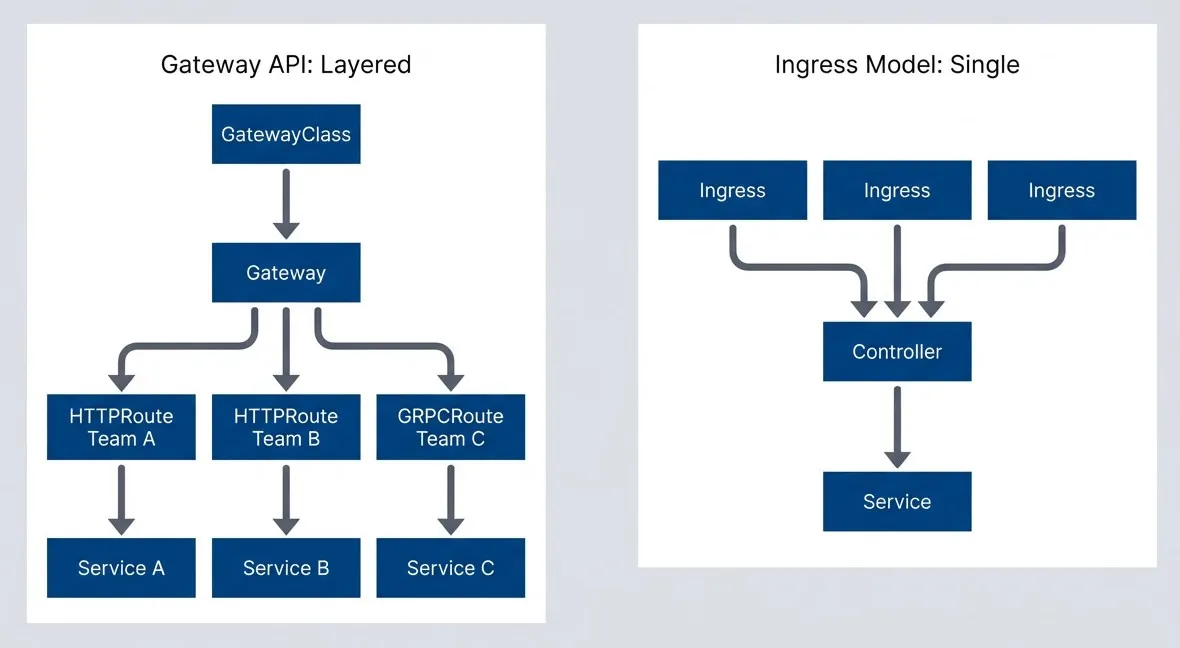

Understanding the Models

Before diving into features and migration, it helps to understand how these two APIs think about routing. Ingress is flat — one resource type handles everything. Gateway API is layered — different resource types for different concerns, managed by different teams.

Ingress Model

Ingress uses a single resource type that combines routing rules, TLS configuration, and backend references. Everything lives in one YAML file, which makes simple cases easy but complex cases awkward. The catch is that Ingress itself only defines the interface — the actual behavior depends entirely on which controller you’re running. NGINX Ingress Controller interprets annotations one way; Traefik interprets them differently; some controllers ignore certain annotations entirely.

# Single Ingress resource handles routing, TLS, and backend config
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: web-ingress
  namespace: production
  annotations:
    # Controller-specific configuration (not portable)
    nginx.ingress.kubernetes.io/rewrite-target: /
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
    nginx.ingress.kubernetes.io/proxy-body-size: "50m"
spec:
  ingressClassName: nginx
  tls:
    - hosts:
        - api.example.com
      secretName: api-tls-secret
  rules:
    - host: api.example.com
      http:
        paths:
          - path: /v1
            pathType: Prefix
            backend:
              service:
                name: api-v1
                port:
                  number: 80
          - path: /v2
            pathType: Prefix
            backend:
              service:
                name: api-v2
                port:
                  number: 80

This simplicity has real limitations. Ingress only supports HTTP and HTTPS — no TCP, UDP, or native gRPC routing. Configuration portability is poor because any non-trivial behavior requires controller-specific annotations. All resources must live in the same namespace as the services they route to. And there’s no separation between infrastructure concerns (which controller, what TLS policy) and application concerns (which paths route where).

Gateway API Model

Gateway API takes a different approach: separate resource types for separate concerns, with explicit ownership boundaries between infrastructure teams, platform teams, and application teams.

The architecture has three layers. GatewayClass is cluster-scoped and defines which controller implementation handles Gateways — typically managed by the infrastructure team. Gateway is namespace-scoped and defines listeners (ports, protocols, TLS termination)—typically managed by the platform team. HTTPRoute (and other Route types) defines the actual routing rules — typically managed by application teams who only need to reference the Gateway they want to attach to.

# Layer 1: GatewayClass (cluster-scoped, managed by infra team)
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: production-gateway-class
spec:
  controllerName: gateway.nginx.org/nginx-gateway-controller
  description: "Production NGINX Gateway"

---
# Layer 2: Gateway (namespace-scoped, managed by platform team)
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: production-gateway
  namespace: gateway-infra
spec:
  gatewayClassName: production-gateway-class
  listeners:
    - name: https
      port: 443
      protocol: HTTPS
      hostname: "*.example.com"
      tls:
        mode: Terminate
        certificateRefs:
          - name: wildcard-tls
            namespace: gateway-infra
      allowedRoutes:
        namespaces:
          from: Selector
          selector:
            matchLabels:
              gateway-access: "true"

---
# Layer 3: HTTPRoute (namespace-scoped, managed by app teams)
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: api-routes
  namespace: production
spec:
  parentRefs:
    - name: production-gateway
      namespace: gateway-infra  # Cross-namespace reference
  hostnames:
    - "api.example.com"
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /v1
      backendRefs:
        - name: api-v1
          port: 80
    - matches:
        - path:
            type: PathPrefix
            value: /v2
      backendRefs:
        - name: api-v2
          port: 80

Notice how the HTTPRoute in the production namespace can reference a Gateway in the gateway-infra namespace. This cross-namespace capability is fundamental to Gateway API’s multi-team model — application teams don’t need access to the Gateway namespace to define their routes.

The table below summarizes the key differences. If you’re scanning for a quick answer: Ingress is simpler when you don’t need the advanced features, Gateway API is more capable when you do.

Feature Comparison

Routing Capabilities

Beyond basic host and path matching, modern routing often requires matching on headers, query parameters, or HTTP methods. Ingress provides limited support for these patterns — you’re dependent on controller-specific annotations that may or may not exist. Gateway API makes advanced matching a first-class feature.

The difference becomes concrete when you need to route requests based on something other than URL path. With Gateway API, routing beta users to a different backend based on a header is straightforward:

# Gateway API: Route beta users to canary backend
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: api-beta-route
spec:
  parentRefs:
    - name: production-gateway
  hostnames:
    - api.example.com
  rules:
    - matches:
        - headers:
            - name: X-Beta-User
              value: "true"
          path:
            type: PathPrefix
            value: /api
      backendRefs:
        - name: api-canary
          port: 80

With Ingress, you’d need to check whether your controller supports a custom annotation for header routing — and if you ever switch controllers, that annotation likely won’t transfer.

Traffic Management

Traffic splitting for canary deployments is where the annotation problem really shows. With NGINX Ingress Controller, you create a separate “canary” Ingress resource with specific annotations. With Traefik, you use different annotations. With HAProxy, different still. None of these approaches are portable.

Gateway API handles traffic splitting natively through the weight field on backend references:

# Gateway API: Native weighted traffic splitting
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: api-canary-route
spec:
  parentRefs:
    - name: production-gateway
  hostnames:
    - api.example.com
  rules:
    - backendRefs:
        - name: api-stable
          port: 80
          weight: 80
        - name: api-canary
          port: 80
          weight: 20

Header manipulation follows the same pattern. Gateway API provides native filters for adding, modifying, or removing request and response headers. URL rewriting is similarly built-in. These capabilities that required controller-specific configuration in Ingress are portable across any Gateway API implementation.

# Gateway API: Request and response header modification
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: api-with-headers
spec:
  parentRefs:
    - name: production-gateway
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /api
      filters:
        - type: RequestHeaderModifier
          requestHeaderModifier:
            add:
              - name: X-Request-Source
                value: "gateway"
            remove:
              - X-Internal-Only
        - type: ResponseHeaderModifier
          responseHeaderModifier:
            add:
              - name: X-Served-By
                value: "api-cluster"
      backendRefs:
        - name: api-service
          port: 80

Protocol Support

Ingress was designed for HTTP and HTTPS. Period. If you need to route TCP traffic to a database, UDP traffic to a DNS server, or gRPC traffic with method-level routing, Ingress doesn’t help. Some controllers added annotation-based workarounds, but these are non-standard and limited.

Gateway API includes dedicated route types for different protocols. TCPRoute and UDPRoute (currently in beta and alpha respectively) enable layer-4 routing. GRPCRoute provides native gRPC support with service and method matching. TLSRoute handles TLS passthrough without termination.

# Gateway API: Native gRPC routing with method matching
apiVersion: gateway.networking.k8s.io/v1
kind: GRPCRoute
metadata:
  name: user-service-route
spec:
  parentRefs:
    - name: production-gateway
  hostnames:
    - grpc.example.com
  rules:
    - matches:
        - method:
            service: myapp.UserService
            method: GetUser
      backendRefs:
        - name: user-service
          port: 9090

The table below summarizes protocol support across both APIs. For HTTP workloads, either option works. For anything else, Gateway API is your only portable choice.

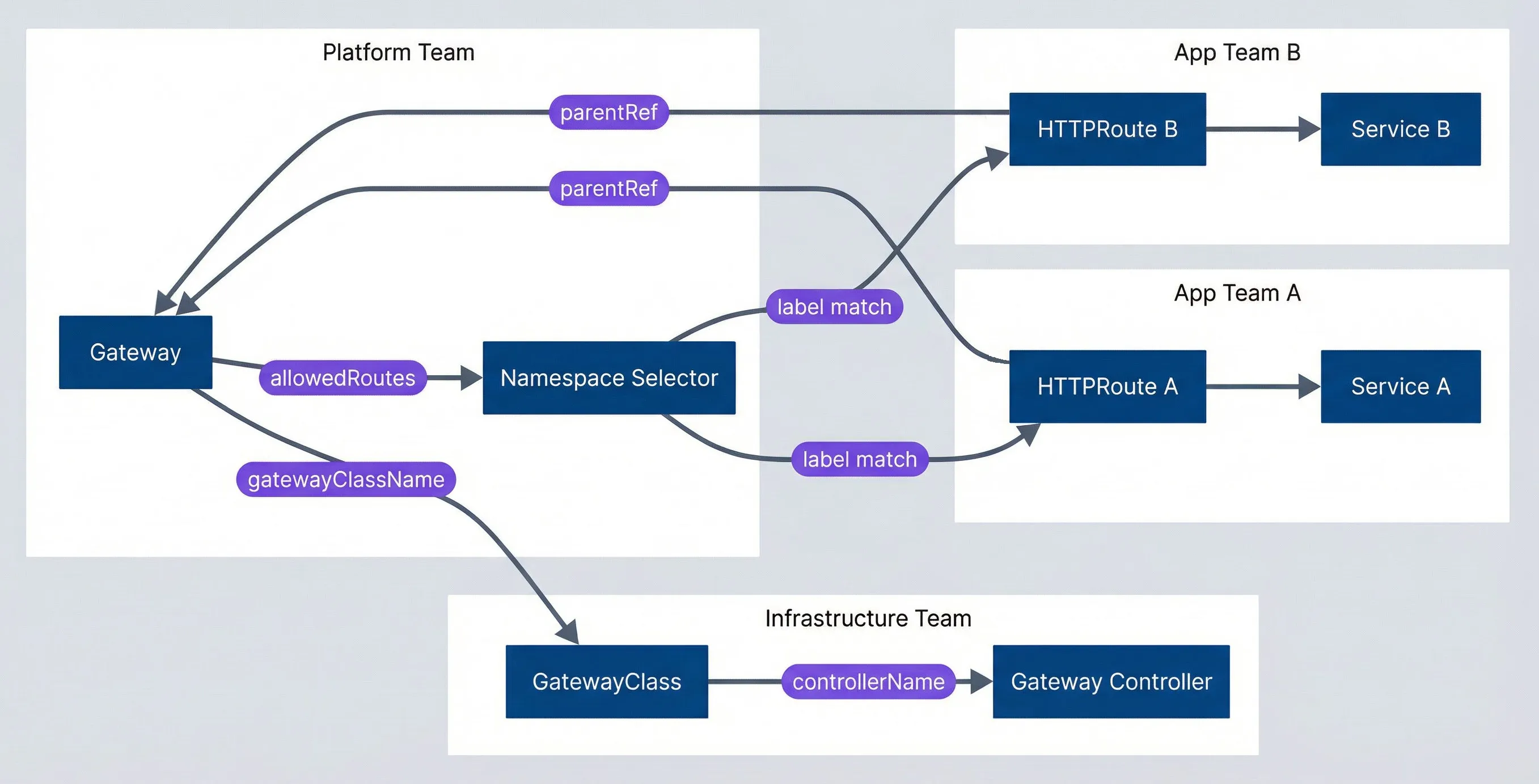

Role-Based Ownership

In organizations with multiple teams, the question of who manages what becomes critical. With Ingress, there’s no natural separation — anyone with permission to create Ingress resources in a namespace can affect cluster-wide routing behavior. This leads to either overly permissive access (risky) or centralized bottlenecks where a platform team manages all routing (slow).

Gateway API’s layered architecture maps naturally to organizational boundaries. Each layer corresponds to a different team with different responsibilities and different access levels.

Multi-Team Architecture

The three-layer model creates clear ownership:

# Platform team's Gateway with namespace restrictions
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: shared-gateway
  namespace: gateway-system
spec:
  gatewayClassName: production
  listeners:
    - name: https
      port: 443
      protocol: HTTPS
      hostname: "*.example.com"
      tls:
        mode: Terminate
        certificateRefs:
          - name: wildcard-cert
      allowedRoutes:
        namespaces:
          from: Selector
          selector:
            matchLabels:
              gateway-access: "true"
        kinds:
          - kind: HTTPRoute

---
# Application team's HTTPRoute (in their namespace)
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: team-a-routes
  namespace: team-a  # Must have label: gateway-access: "true"
spec:
  parentRefs:
    - name: shared-gateway
      namespace: gateway-system
  hostnames:
    - "team-a.example.com"
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /
      backendRefs:
        - name: team-a-service
          port: 80

The allowedRoutes.namespaces.selector is the key mechanism. Only namespaces with the label gateway-access: "true" can create HTTPRoutes that attach to this Gateway. The platform team controls which namespaces get that label, effectively controlling which teams can self-service their routing.

This separation is enforced at the Kubernetes API level, not just by convention. If an application team tries to create an HTTPRoute referencing a Gateway that doesn’t allow their namespace, the route won’t attach — it will show an error in its status conditions.

You’ll want to back this up with Kubernetes RBAC. Give the infrastructure team permissions on GatewayClass resources, the platform team permissions on Gateway resources in the gateway-system namespace, and application teams permissions only on HTTPRoute resources in their own namespaces. The Gateway API resources and RBAC work together to create a self-service model with appropriate guardrails.

Migration Strategy

If you’ve decided Gateway API is right for your use case, you don’t need to migrate everything at once. Ingress and Gateway API can coexist on the same cluster, even with the same controller. This enables an incremental approach that minimizes risk.

Migration Readiness Checklist

Assuming you’ve already decided Gateway API is the right fit (see the Decision Framework section), the next question is whether now is the right time to execute the migration.

Timing signals that suggest waiting:

Prerequisite checklist before starting:

Effort estimation:

Migration timelines depend heavily on annotation complexity. If your Ingress resources use only standard fields (hosts, paths, TLS), conversion is mechanical and you can migrate a route in under an hour. If you’re relying on custom annotations, rate limiting policies, or configuration-snippet blocks, plan for research time to find Gateway API equivalents. A typical 20-service cluster with moderate annotation usage takes 4-8 weeks for a careful migration with parallel operation.

Incremental Migration Path

The safest migration runs both APIs in parallel, migrating routes one at a time with the ability to roll back each change independently.

# New API version uses Gateway API
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: api-v2-route
  namespace: production
spec:
  parentRefs:
    - name: production-gateway
      namespace: gateway-system
  hostnames:
    - "api.example.com"
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /v2
      backendRefs:
        - name: api-v2
          port: 80
# Existing /v1 routes still handled by Ingress

This coexistence works because Ingress and Gateway API are separate resource types that controllers watch independently. When a request arrives, the controller checks both APIs and routes based on the matching rules. Requests to /v2 match the HTTPRoute; requests to /v1 match the Ingress. There’s no conflict because they handle different paths. If you need to migrate an existing path, create the HTTPRoute first with a different hostname for testing, then update DNS or the hostname field to cut over.

The key insight is that rollback is easy in phases 1-3. If an HTTPRoute causes problems, delete it and the traffic falls back to Ingress. Only in phase 4, when you delete Ingress resources, do you commit to Gateway API.

Ingress to HTTPRoute Conversion

Converting an Ingress resource to an HTTPRoute is mostly mechanical, but there are gotchas. The path matching types have different names: Ingress Prefix becomes HTTPRoute PathPrefix. Ingress ImplementationSpecific has no direct equivalent — you’ll need to understand what your controller actually did with it and pick the appropriate HTTPRoute match type.

The harder part is annotations. Each annotation that your Ingress uses for non-standard behavior needs to be converted to Gateway API’s native features or policy attachments. Common conversions:

The configuration-snippet annotation is the hardest to migrate. It allows arbitrary NGINX config, which means you need to understand exactly what it’s doing and find the Gateway API equivalent. Sometimes there isn’t one — you may need a controller-specific extension or policy.

Ecosystem Maturity

Gateway API is newer, which means less community content and less battle-tested operational knowledge. That gap is closing, but it’s worth understanding where you might hit friction.

Controller Support

All major ingress controllers now support Gateway API at some level. The implementations vary in completeness:

If you’re currently using NGINX Ingress Controller, note that Gateway API support comes through a different project — NGINX Gateway Fabric — not the original nginx-ingress. They can coexist, but they’re separate deployments.

Tooling and Documentation

Ingress has an 8-year head start. You’ll find more blog posts, more examples, and more answers to edge-case questions. Gateway API’s official documentation is comprehensive, but community content is still catching up.

Debugging tools are similar in capability but different in approach. Gateway API resources have richer status conditions that tell you exactly why a route isn’t working. Run kubectl describe httproute <name> and look at the conditions section:

Status:
  Parents:
    Conditions:
      Type:    Accepted
      Status:  False
      Reason:  NotAllowedByListeners
      Message: Route hostname "api.example.com" does not match listener

This structured feedback beats digging through controller logs — you can see immediately that the hostname doesn’t match the Gateway’s listener configuration. Ingress debugging typically means reading controller logs to understand why traffic isn’t routing as expected.

For GitOps workflows (ArgoCD, Flux), both work natively. The main gotcha with Gateway API is that you need the CRDs installed before ArgoCD tries to sync resources that use them — plan your sync waves accordingly.

Decision Framework

After all the feature comparisons and migration details, the decision comes down to a few key questions.

When to Choose Ingress

Stick with Ingress if:

Example scenarios: a single application with a few endpoints, internal tools with basic routing, straightforward microservices where one team owns everything.

When to Choose Gateway API

Choose Gateway API if:

Example scenarios: multi-tenant platforms, deployment pipelines with canary stages, mixed-protocol workloads, service mesh integration.

The Hybrid Approach

You don’t have to choose one or the other. Many organizations run both:

Consider a concrete example: your cluster runs an internal admin dashboard that hasn’t changed in two years (Ingress works fine), a legacy API that’s in maintenance mode (no reason to migrate), and a new public API with canary deployment requirements (Gateway API). Running both APIs lets you use Gateway API where it adds value without touching stable workloads that don’t need its features.

This works because both APIs can coexist on the same cluster, even with the same controller. The main cost is cognitive load — your team needs to know both patterns. Document which services use which API and establish a convention for new services.

Conclusion

The choice between Ingress and Gateway API isn’t about which technology is “better”—it’s about which fits your current needs and team capabilities.

Ingress is simpler, more mature, and has years of battle-tested operational patterns. If your routing needs are straightforward — host-based routing, path prefixes, TLS termination in a single namespace — Ingress does the job with less complexity.

Gateway API is more powerful and more portable. Its layered architecture enables multi-team self-service with guardrails. Native support for traffic splitting, header manipulation, and non-HTTP protocols eliminates the annotation sprawl that makes Ingress configurations fragile. If you need these capabilities, Gateway API delivers them in a standardized way that works across controllers.

Both APIs will coexist for years — the Kubernetes networking SIG has confirmed there’s no deprecation timeline for Ingress. Migrating purely because Gateway API is “the future” is a poor use of engineering time. Migrate when you have concrete requirements that Gateway API solves better: cross-namespace routing, native traffic splitting, protocol support, or role separation. For greenfield projects where you don’t have strong opinions, Gateway API is a reasonable default — it’s mature enough for production, and starting there avoids a future migration.
